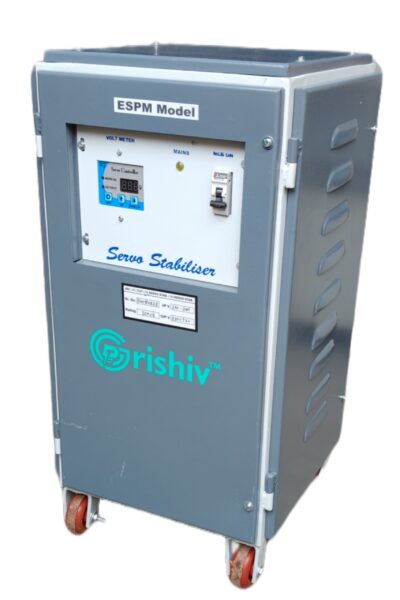

Air Cooled Servo Stabilizer
_

At Grishiv Power Control, we manufacture and supply a range of 1 Phase servo voltage stabilizers. We manufacture it with the latest equipment and technologies. Even our stabilizers are recognized as the most productive and efficient machines in the market.

The 1 Phase servo voltage stabilizer is made with the finest materials that enhance its durability. Our stabilizers come in several models to meet the needs of various industries. Customized solutions are also available upon request. These stabilizers are designed to enhance productivity with optimum relief.

Advantages and Benefits
  • No potentiometer adjustments.
  • All parameters can be modified using the keypad in the front panel
  • Set input voltage band
  • Set output voltage
  • Set output voltage sensitivity
  • Output over / under voltage cut-off
  • Input over voltage / under voltage cut-off
  • Over load cut-off
  • Trip time delay adjustments with variable setting
  • Manual and auto start facility
  • Common control card – any capacity
  • Fully micro control function
  • Generator compatibility
  • Both outdoor and indoor models
Features & Benefits Technical Specifications
No
Capacity
1 to 25 kva
1
Input voltage range
 170-270V, 170-300V, 100-300V, 1 Phase. (As per Customer requirement)
2
Output Voltage
230±1% V AC, 1 Phase
3
Rate Of Correction
Up to 75 V/sec
4
Effect of Power Factor
Nil
5
Waveform Distortion
Nil
6
Response Time
10 msec
7
Duty Cycle
100% continuous
8
Line Frequency
47 to 63 HZ
9
Controlled Type
Digital Micro controlled based
10
Efficiency
>98%
11
Operating Temperature
0-50° C
12
Nature Of Cooling
Air Cooled
13
Cabinet Color
Siemens Grey
14
Servo Motor Drive
AC Synchronous Type
15
Protections
1. Input High/Low Voltage Cutoff
2. Output high/Low voltage cutoff
3. Overload Cutoff Protection
4. Single Phasing Preventer
5. Short Circuit Protection
Application:-
  • Pharmaceutical units
  • Cold-storages
  • Hospitals
  • Hotels and restaurants
  • Call centers
  • Air-conditioning plants.
  • Multi-strayed buildings
  • Food-processing units
  • Food-processing units
  • Nursing homes
