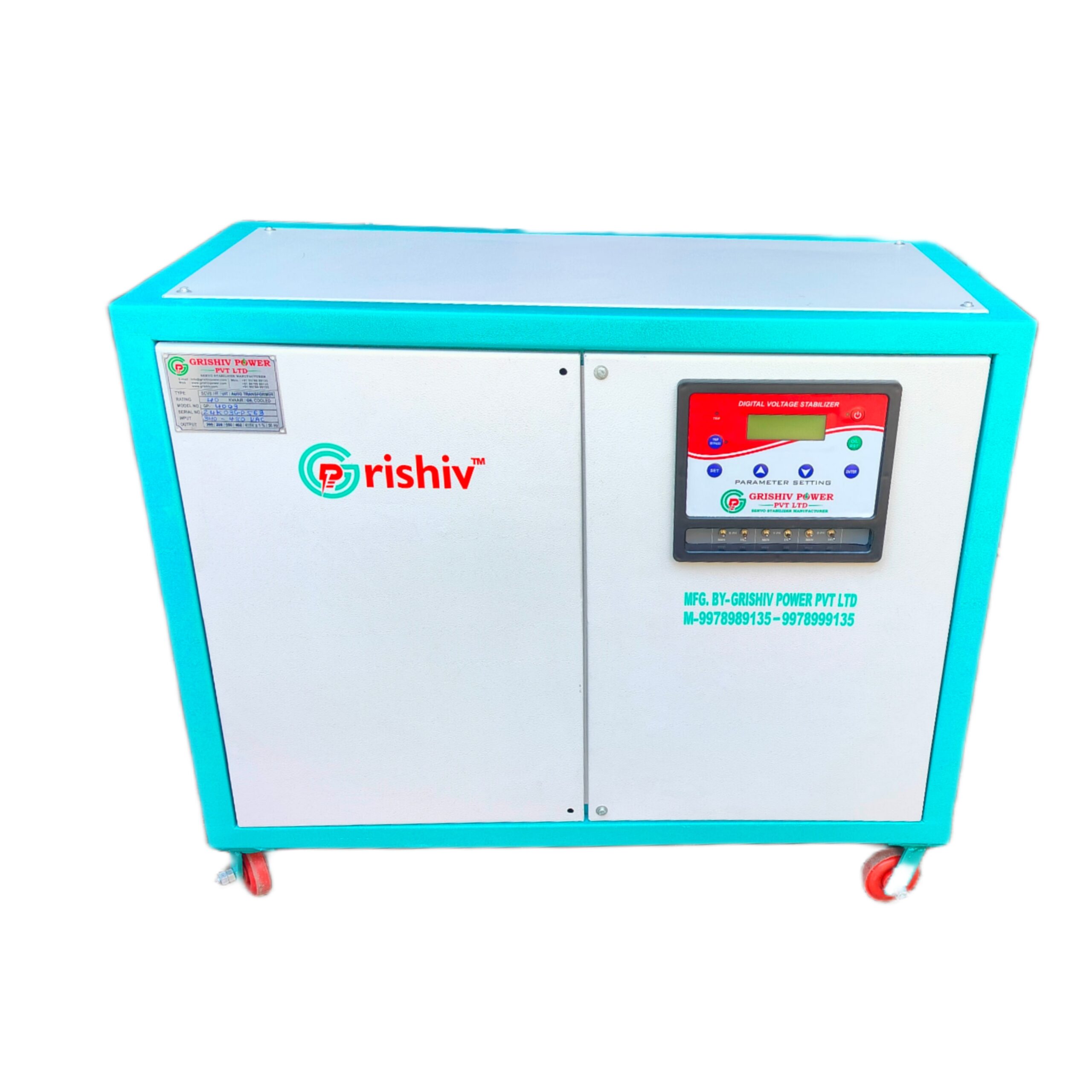

Air Cooled Servo Stabilizer
_
Ensure a seamless, uninterrupted workflow for your critical machinery with premium Air Cooled Servo Stabilizers from Grishiv Power, a leading stabilizer manufacturer in Ahmedabad, Gujarat.
Specifically designed to deliver a highly accurate and constant voltage supply, our industrial-grade servo stabilizers protect expensive machinery and equipment from unpredictable voltage fluctuations. By choosing a trusted local manufacturer, you ensure maximum operational efficiency, minimize costly downtime, and get robust power protection tailored for the industrial hubs of Gujarat.
Features & Benefits
- No potentiometer adjustments.
- All parameters can be modified using the keypad in the front panel
- Set input voltage band
- Set output voltage
- Set output voltage sensitivity
- Output over / under voltage cut-off
- Input over voltage / under voltage cut-off
- Over load cut-off
- Trip time delay adjustments with variable setting
- Manual and auto start facility
- Common control card – any capacity
- Fully micro control function
- Generator compatibility
- Both outdoor and indoor models
Features & Benefits Technical Specifications
| No | Capacity | 7.5 KVA to 75 KVA |
|---|---|---|
| 1 | Input voltage range | 340-480VAC, 360-460VAC, 380-480VAC or AS per Customer Requirement |
| 2 | Output Voltage | 380V/400V/415V ±1% (As per Customer requirement) |
| 3 | Rate Of Correction | Up to 75 V/sec |
| 4 | Effect of Power Factor | Nil |
| 5 | Waveform Distortion | Nil |
| 6 | Response Time | 10 msec |
| 7 | Duty Cycle | 100% continuous |
| 8 | Line Frequency | 47 to 63 HZ |
| 9 | Controlled Type | Digital Micro controlled based |
| 10 | Efficiency | >98% |
| 11 | Operating Temperature | 0-50° C |
| 12 | Nature Of Cooling | Air Cooled |
| 13 | Cabinet Color | Siemens Grey |
| 14 | Servo Motor Drive | AC Synchronous Type |
| 15 | Protections | 1. Input High/Low Voltage Cutoff 2. Output high/Low voltage cutoff 3. Overload Cutoff Protection 4. Single Phasing Preventer 5. Short Circuit Protection |
Accessories (Optional)
- Ultra isolation transformer at output.
- Bypass arrangement.
- Phase Sequence Protection.
- Line noise & Surge Suppressor.
- Input Out of range protection.
- EMI/RFI Filter.
- Non Standard rate of correction.
- Generator compatibility
